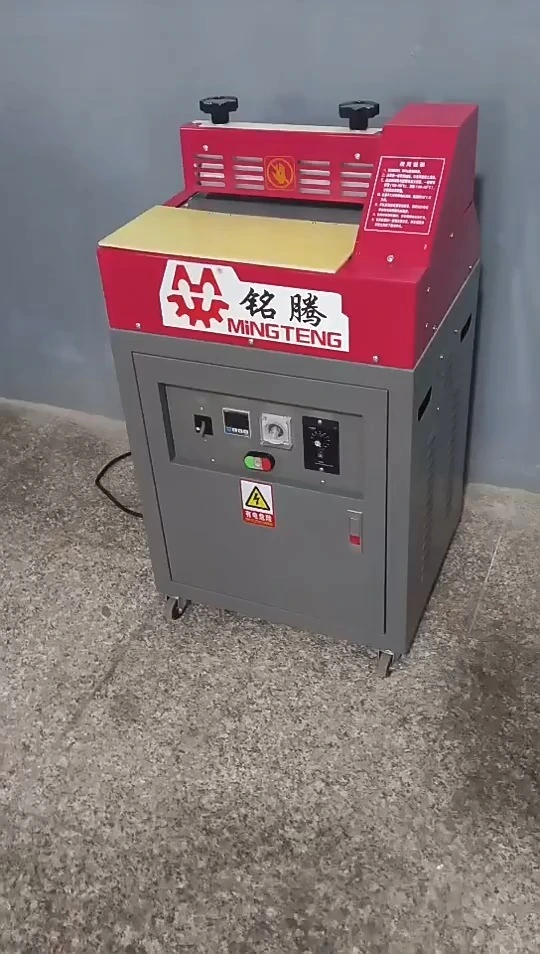

MT-203C Semi-Automatic Roller Type Hot Melt Glue Shoe Sole Gluing Machine Leather Gluing Machine
Hot-melt adhesive sizing machine
1. This machine is suitable for gluing and laminating of shoes, leather goods, stationery, suitcases, sports equipment, cardboard boxes, etc. with a thickness of more than 0.5mm.
2. The soft stick can move up and down and the pressure can be adjusted. The soft, hard, low front and high back materials can be glued.
3. The glue box can adjust the temperature according to the characteristics of hot melt glue, which can effectively prevent the carbonization of hot melt glue. Simple operation, beautiful appearance and uniform gluing.
4. The machine adopts speed control, the glue speed can be adjusted according to the needs.
Advantages
Hot Melt Glue Roller Coater Coating Gluing Machine
1. This machine is suitable for gluing human plane on materials such as shoes, leather, stationery, bags, cardboard sports equipment and so on.
2. The upper wheel frame of this machine can float up and down and can be adjusted. For uneven, soft, hard, thick, thin and other
materials, it can be used for stepless variable speed and speed regulation for gluing. The temperature of the roller and the glue tank is controlled separately. Start the device in case of failure.
Operating Instructions:
1. Use 220V50H single-phase power supply.
2. An effective ground wire must be connected to avoid the danger of contact.
3. After turning on the machine, check whether there is any abnormality in the machine. After warming up for 20 minutes, start the motor and adjust the motor speed.
4. The temperature of the roller and the rubber tank is controlled independently. Generally, it is recommended to adjust the temperature of the rubber tank (150-170) and the roller (130-170) depending on the situation.
5. Turn off the motor when the machine is not working. Warm to 120 degrees or off.
6. Kerosene or white mineral oil should be used when cleaning and maintaining the machine.
7. Be sure to pay attention to safety when using the machine, and please press the emergency stop switch immediately in case of danger.
Key attributes
| Applicable Industries | Manufacturing Plant,Other | Weight (KG） | 65 |
| Showroom Location | None | Video outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year | Core Components | Engine,Bearing,Motor,Pressure vessel |
| Place of Origin | Fujian,China | Warranty | 1 Year |
| Condition | New | Brand Name | MingTeng |
| Brand | MT | Useful | Shoes Making |
| Color | Customers'Demand | Key words | Shoe Machine Industry |
| Shipping | 15days | After Warranty Service | Technical Video Support |
| Machine | Shoe Machine Line | DIMENSION | 63*59*102CM |
