Focused on shoe making equipment for 20 years

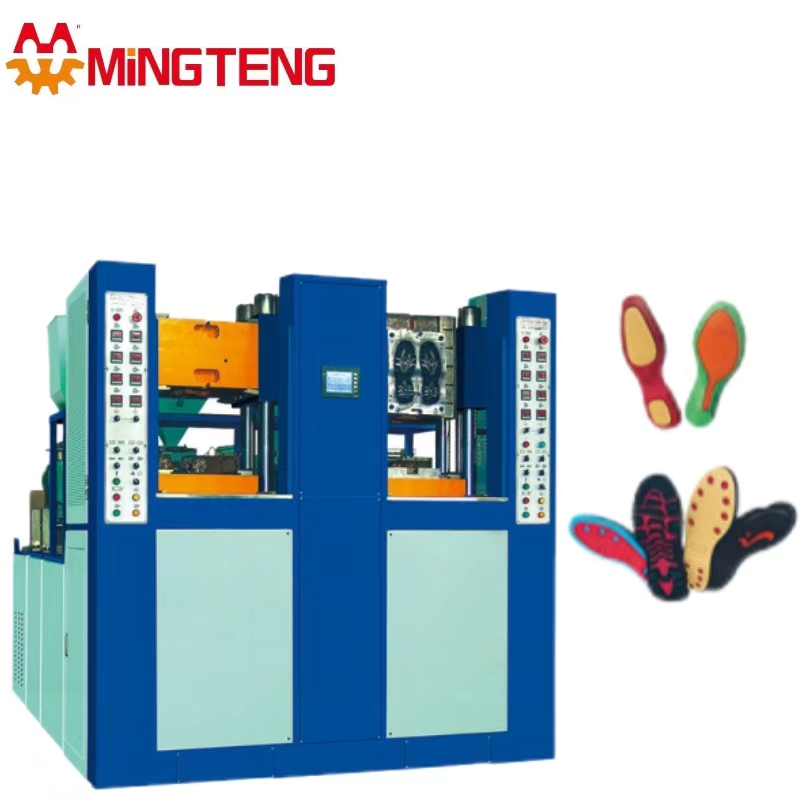

MT-254 /254A Suitable For Molding TR OR TPU In Multi-Color Unit Soles By Injection Or Extrusion System
Injection molding machine
1.This shoe injection moulding machine is applied to produce the one color, two color or three color leisure shoe soles, male and female slippers and sandals , air blowing shoes and sport shoes which are made of PVC,TPR,TPU,PP materials.
2.Full automatic computer control. The system can detect the work state of all parts all the time and show the result on screen.
3.Virtically pressed hydraulic mold-close system,quickly mold-lock system.
4.0-90°-180° turnover strucure available with several production molds.
5.The mould thickness can automatic adjust between 80-200mm.
6.The oil pump of the motor is outside placed,causing a better radiating effect and thus a longer duration of the machine.
7.Integrative of elecric control box and hydraulic system.
Advantages
1.Used for TR TPU PVC TPR material shoe soles;
2.Can use servo motor to save engergy;
3.fullautomatic operation can save labor force;
4.same operation as tradition italian machine;
5.Qualified products;
6.Bulk supply;
7.Unexperienced workers can also run the production;
8.Convenient maintenance;
9. High clamping force 150 Tons makes high quality of sole.
Key attributes
| Applicable Industries | Manufacturing Plant,Other | Weight (KG） | 10000 |
| Showroom Location | None | Video outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year | Core Components | Engine,Bearing,Motor,Pressure vessel |
| Place of Origin | Fujian,China | Warranty | 1 Year |
| Condition | New | Brand Name | MingTeng |
| Brand | MT | Useful | Shoes Making |
| Color | Customers'Demand | Key words | Shoe Machine Industry |
| Shipping | 15days | After Warranty Service | Technical Video Support |
| Machine | Shoe Machine Line | DIMENSION | 300*213*233CM |
