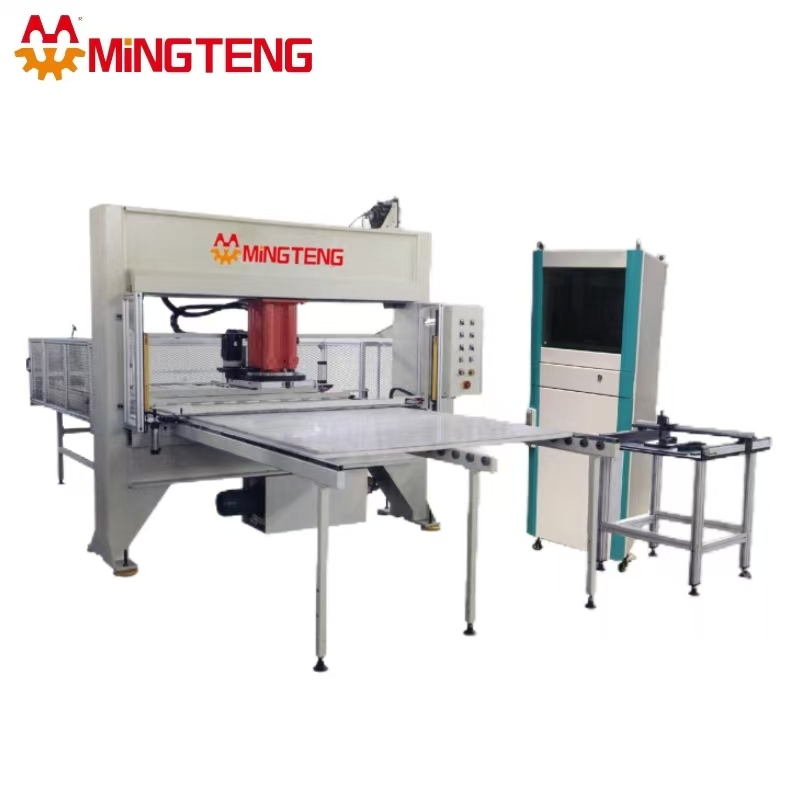

MT-350KN Automatic Typesetting Roll And Sheet Material Moving Cutting Machine

Automatic Typesetting Roll And Sheet Material Moving Cutting Machine

This machine is applicable for the continuous die-cutting of various non-metal coil and sheet materials using the moulded cutting die in apparle,shoes and cap,medicainstrument,cultural articles,sports goods industry etc.

1、The machine uses the upper computer for control purpose and supports copying cutting die,inputting electronic graphics,automatic typesetting etc.It also supports on-screen display and may precisely control machine movement along the directions ofX, Y, Z, and β .The punch may automatically perform die-cutting according to the position preset using the typesetting software.

2、This machine has a sled type feeding mechanism and supports automatic circulatory spreading.It may be used for the die-cutting of extremely thin and soft coil materials,as well as sheet materials.

3、With memory function,the machine may store various operating modes.Installing a suitable cutting die makes it possible for the machine to implement manufacturing process in the preset operating mode.

4、The machine is driven by a servo motor to ensure accurate feeding.The use of servo motor and ball screw as dirve systems enables the punch to achieve precise positioning.The servo motor driven rotary punch ensures accurate die cutting position.

5、The machine supports manual and automatic modes in which operators only need to pick up the finished products.This may help greatil improve working efficiwency and reduce labor intensity.

6、The machine is enclosed by protective mesh.The discharge port is provided with safety light curtain to enhance the safety of the machine.

7、Some special specifications may be customized.
