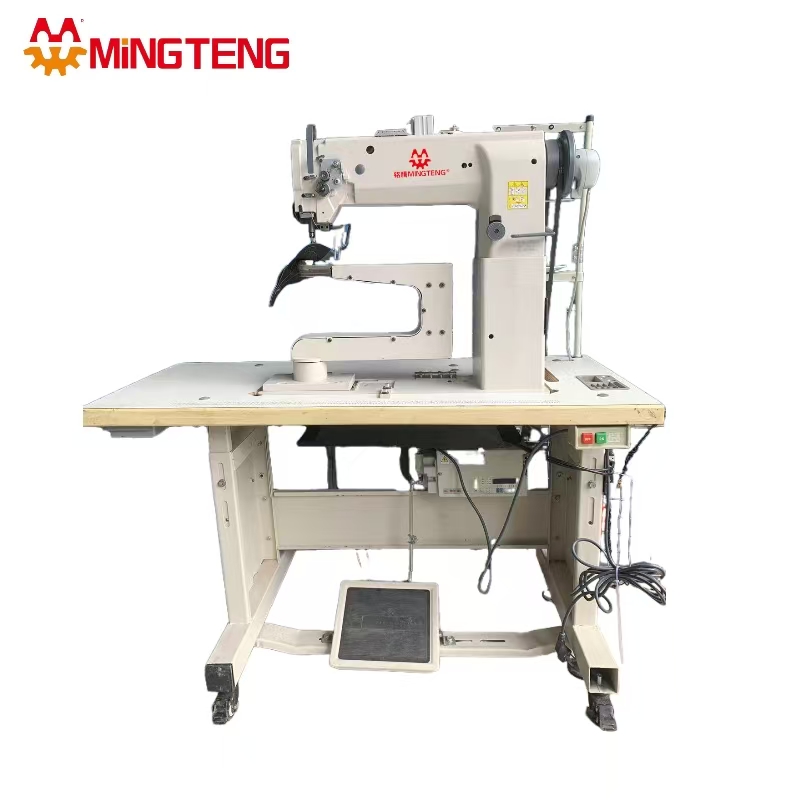

MT-360 Industrial Baggage Post Bed Sewing Machine Horizontal Rotary Post Bed Walking Foot Lockstitch Sewing Machine 1

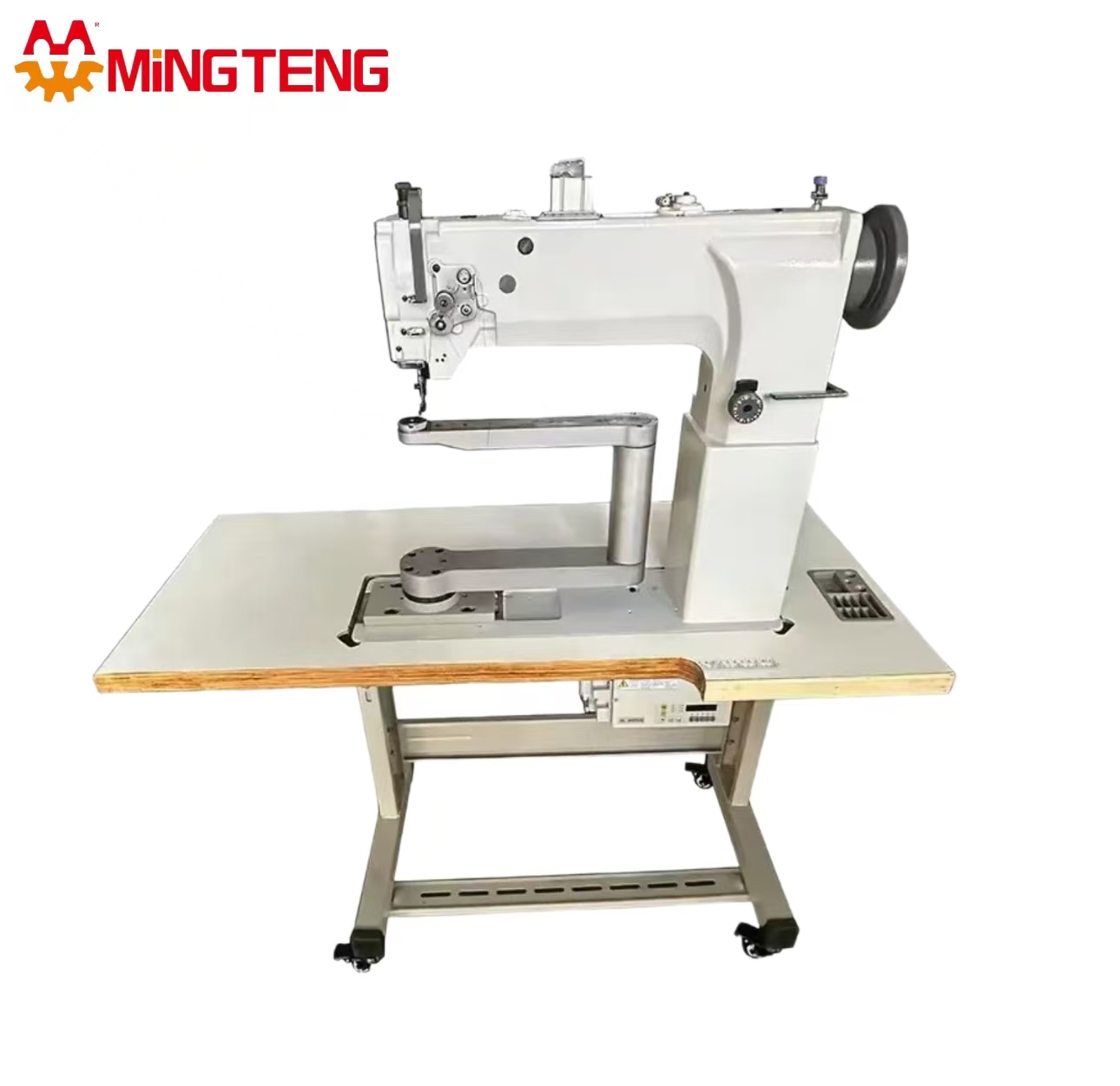

MT-360 Industrial Baggage Post Bed Sewing Machine Horizontal Rotary Post Bed Walking Foot Lockstitch Sewing Machine 2

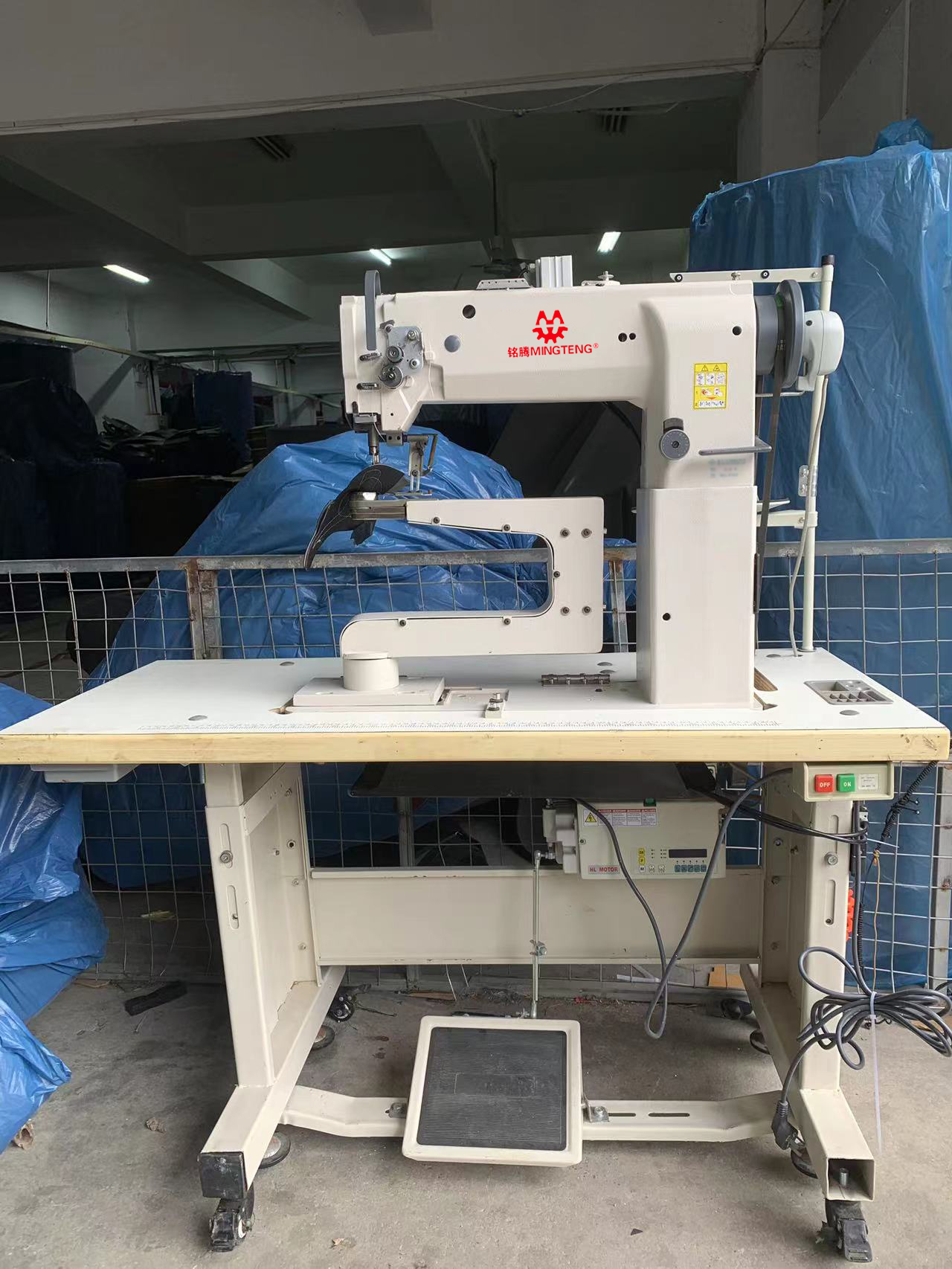

MT-360 Industrial Baggage Post Bed Sewing Machine Horizontal Rotary Post Bed Walking Foot Lockstitch Sewing Machine 3

MT-360 Industrial Baggage Post Bed Sewing Machine Horizontal Rotary Post Bed Walking Foot Lockstitch Sewing Machine

Industrial Baggage Post Bed Sewing Machine

1. 360 degree rotating with U arm rock machine head sewing, achieve perfect stitch at any angle.

2. With oxhorn gear drive, oxhorn right and left shuttle, straight arm type turning.

3. Better stitch lines, lower noise and lower vibration generated by servo motor in X, Y direction.

4. Use electronic servo motor to control the speed, it is easy to change the speed, and break controlled by computer. Stop the needle exactly with needle positioner.

5. Applicable for bag, sports shoes, casual shoes side seam locking type sideline processing.

Inquiry

Write a Review

Key attributes

Model	Sewing Speed	Motor Power	Voltage	Needle
MT-360	1500r.p.m/min	7500W direct drive motor	220V	DP x 17 (#18-#24)

Applicable Industries	Manufacturing Plant,Other	Weight (KG）	240
Showroom Location	None	Maximum sewing stitch length	8mm
Machinery Test Report	Provided	Presser foot lifting height	20mm
Warranty of core components	1 Year	Arm length	275mm
Place of Origin	Fujian,China	Clear arm height	158mm
Condition	New	Table working size	641.5mm(width) x 178mm(high)
Brand	MT	Needle bar stroke	36mm
Color	Customers'Demand	Presser foot interaction up and down	3-8mm
Shipping	15days	After Warranty Service	Technical Video Support
Machine	Shoe Machine Line	DIMENSION	12060158CM
