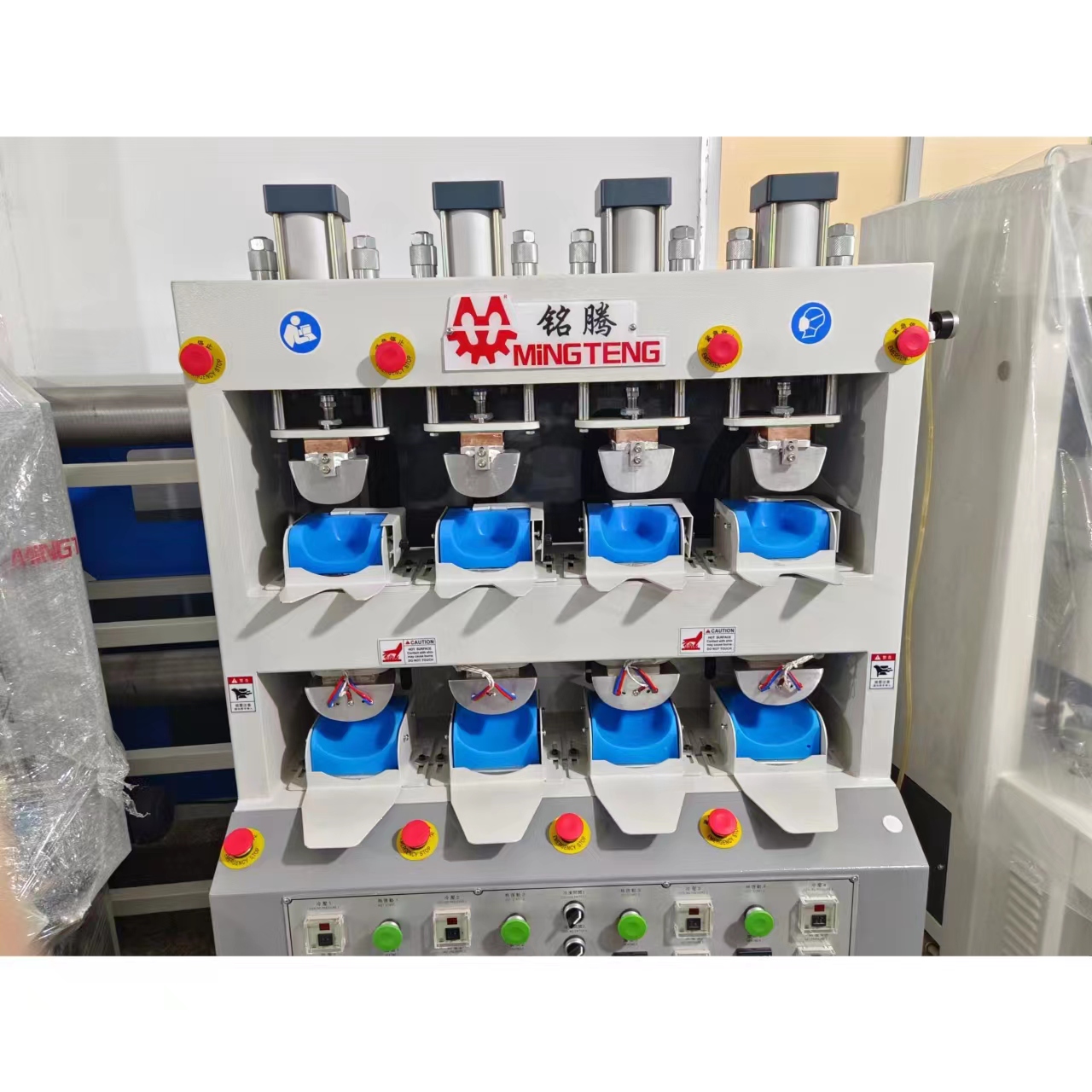

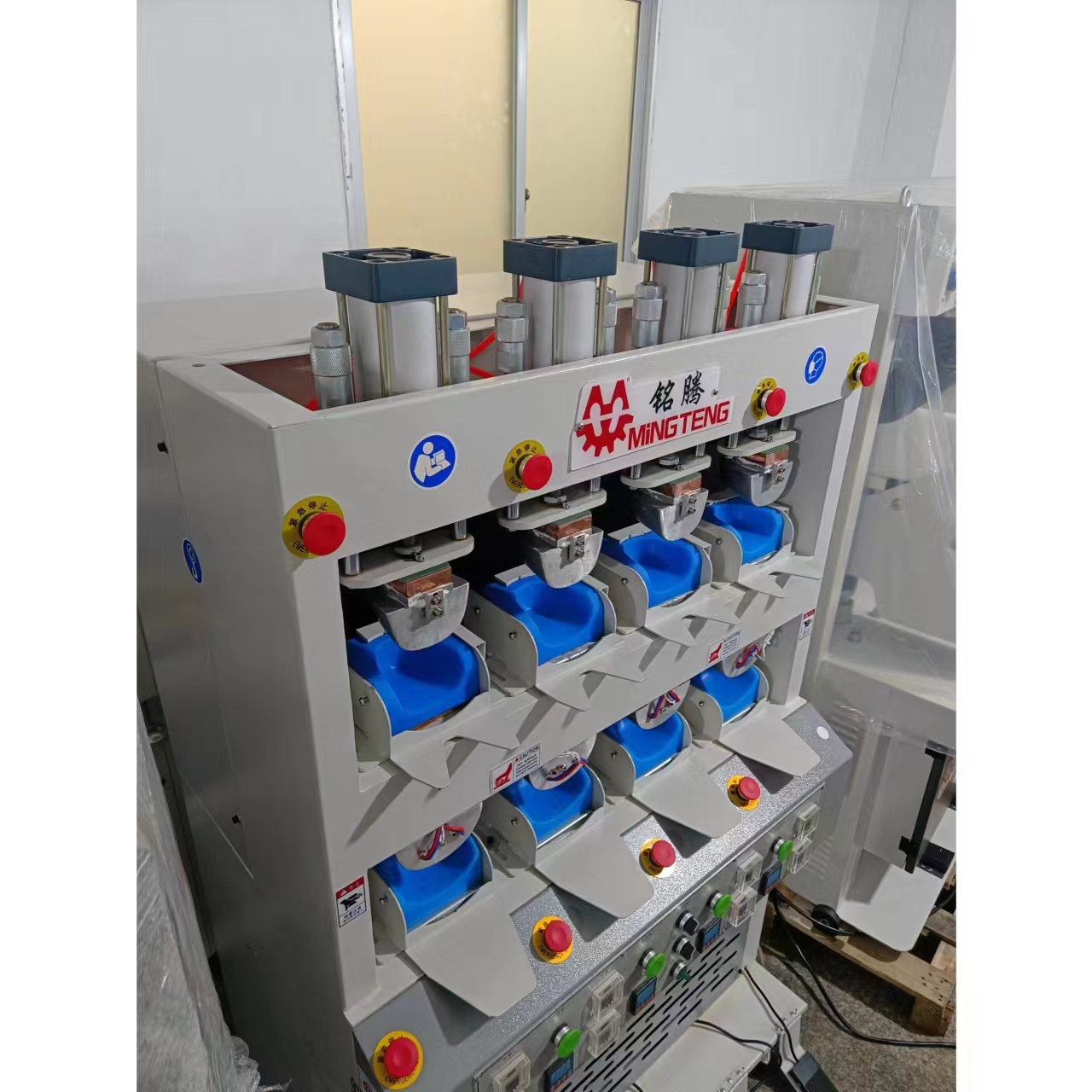

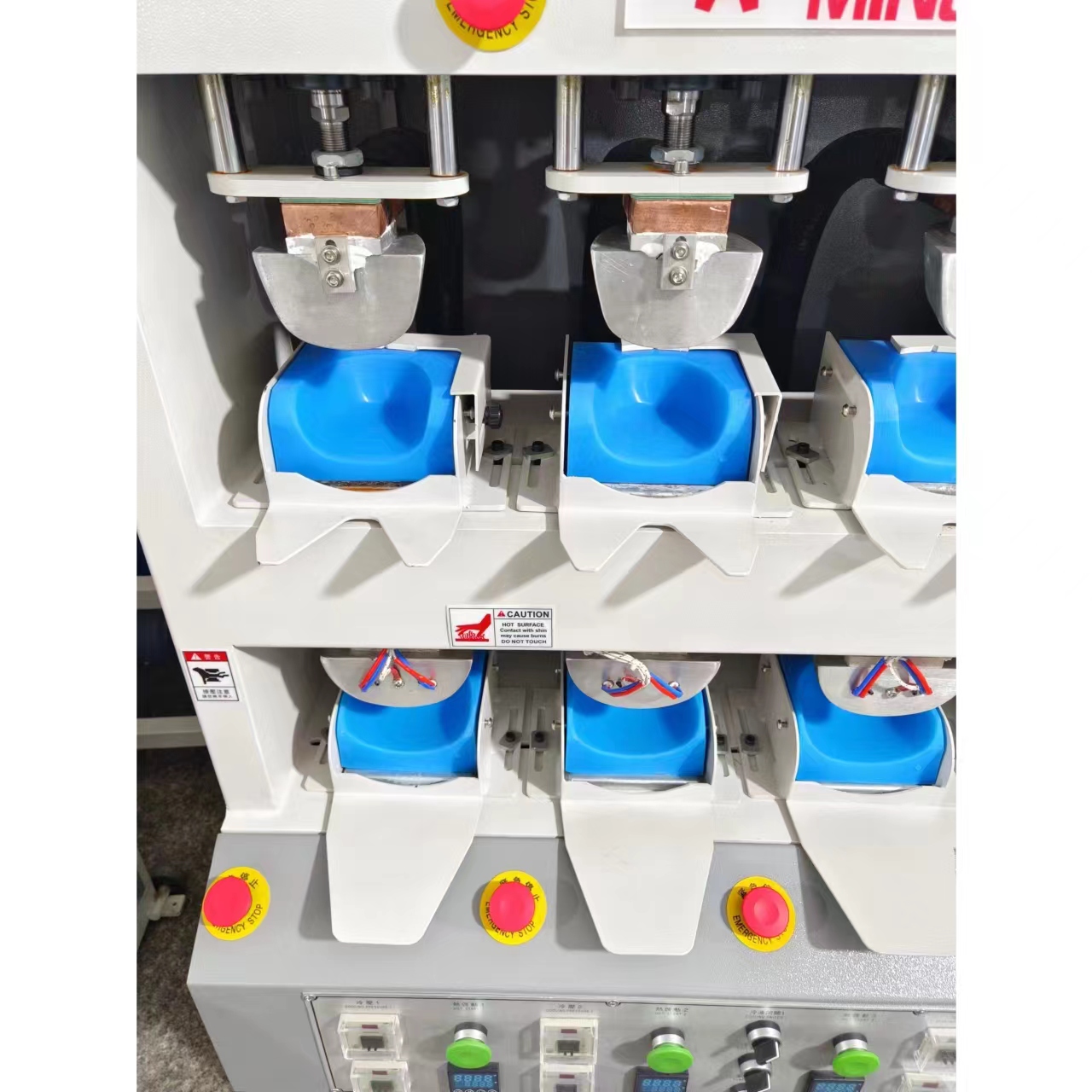

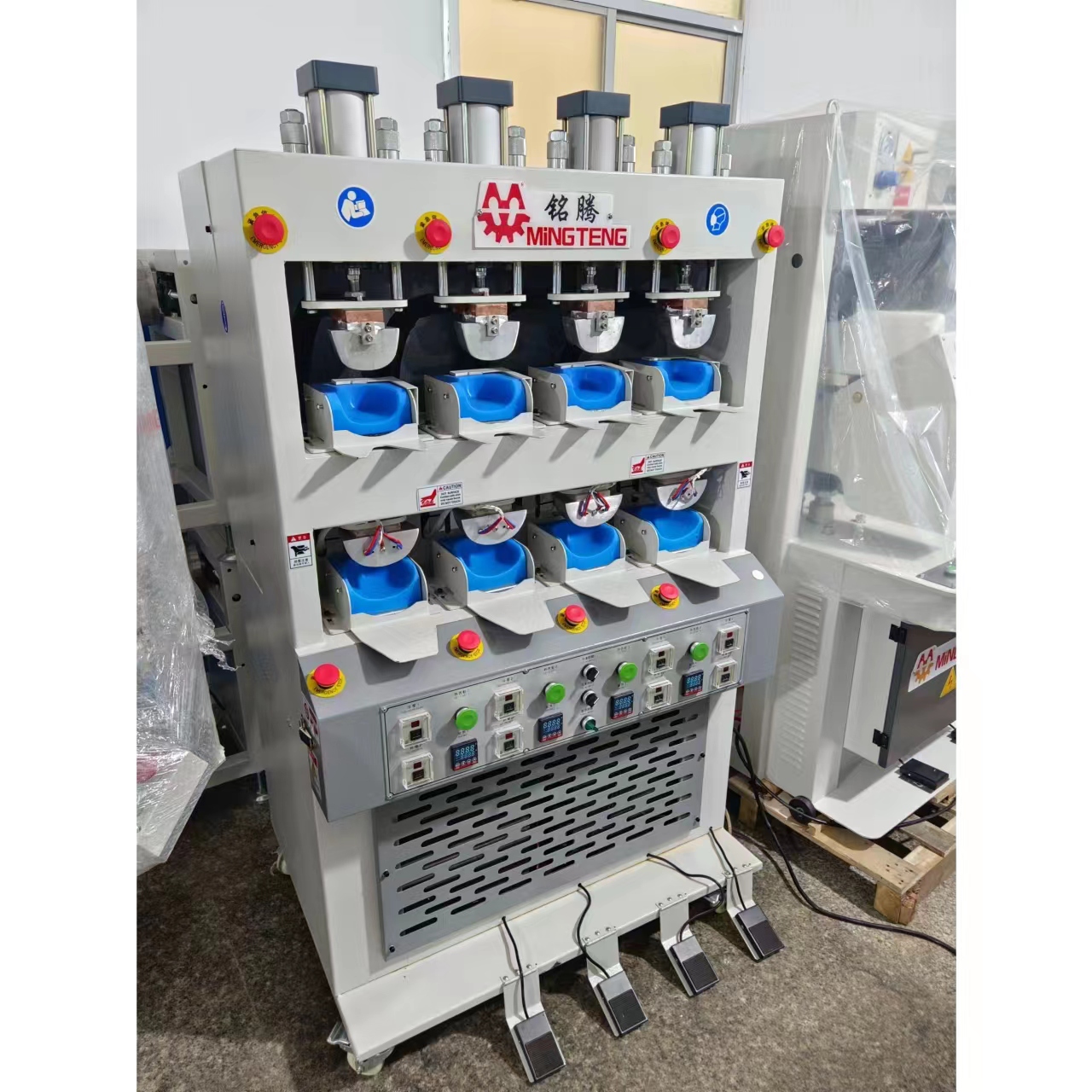

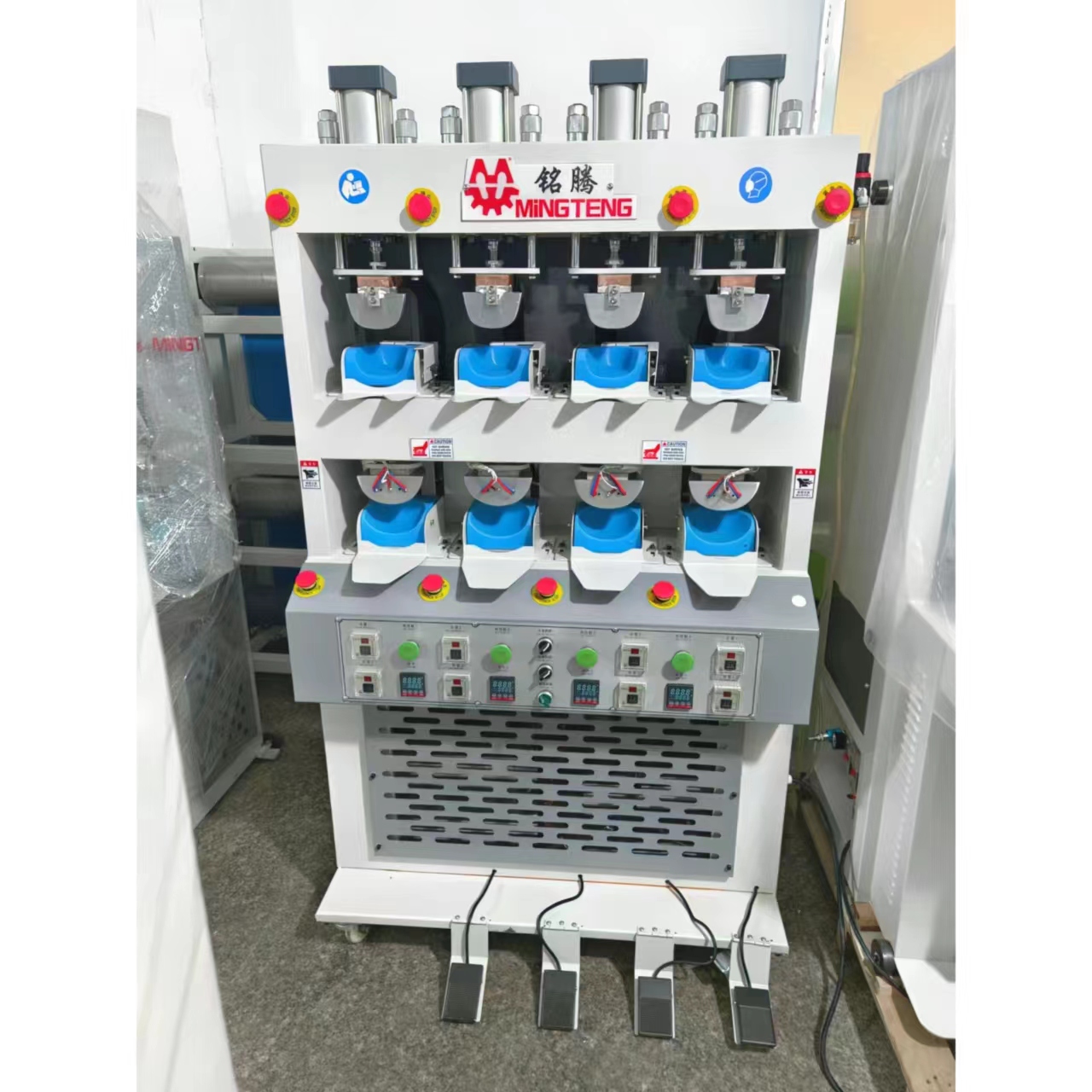

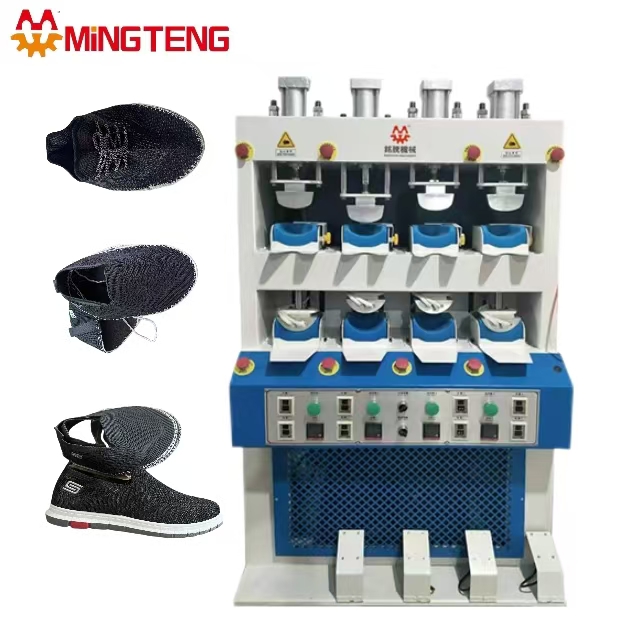

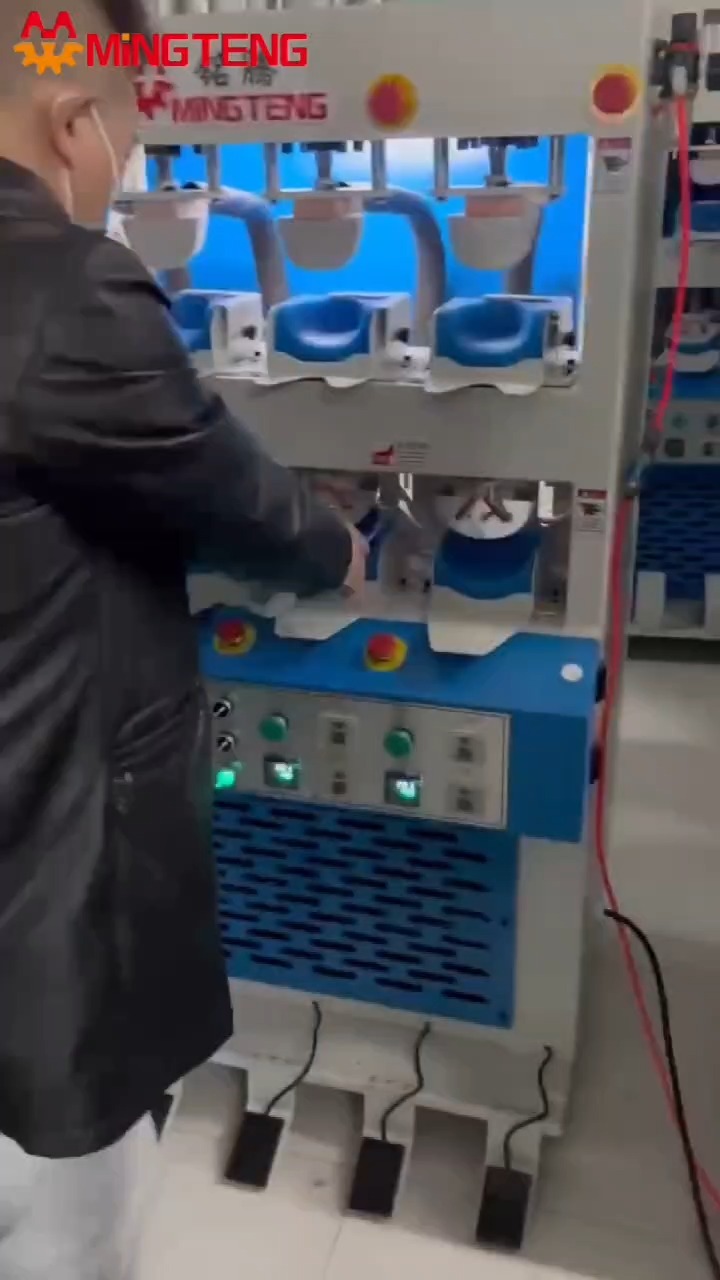

MT-627 Horizontal Type Four Hot And Four Cold Shoe Toe Cap Shape Forming Molding Machine

Inverted four cold and four hot shoe toe shaping machine

1. Heel seat, heel and inner three materials plying-up and molding process.

2. Equipped with high thermal conductivity softening and high efficiency cooling mold, it makes heel seat basic coincidence with the shape of last.

3. Inclined design of working area, it would be easier for operator.

4. Equipped with automatic tightening function of the upper to prevent the upper over tension and reduce damaged problem

5. The temperature of inner and outer mold for softening and cooling setting are adjustable, independently controlled, max, high temperature is 200 degrees and lowest under zero 15 degree.

6. We can make the mold for hot and cold setting against your design and shape of shoe last as provided.

Inquiry

Write a Review

Advantages

1.This machine is suitable for heel preheating molding processing of all kinds of shoes. The back heel, main heel and the lining are combined to achieve a sticking effect.

2.Use of silica gel die for external mold, so there is no need to customize the external mold, just customize the internal mold only according to footwear.

3.The precise action sequence can be designed by various controllers, to make the stereotyped effect perfect.

4.Controlled with a series of pressure valves in conjunction with PLC, fast and efficient. It maintains maximum working space, without causing friction on the shoes, in order to achieve the best pressing effect of sticking.

5.With alarm lights and hot air activation. The work lamp is selected, except for lighting, it can help the shoes to get accurate positioning.

Key attributes

Model	Power	Air Pressure	Voltage	Weight (KG)
MT-627	4.8KW	5-6 kg/cm²	220V/50HZ	710KG

Applicable Industries	Manufacturing Plant,Other	Weight (KG）	710
Showroom Location	None	Video outgoing-inspection	Provided
Machinery Test Report	Provided	Marketing Type	Ordinary Product
Warranty of core components	1 Year	Core Components	Engine,Bearing,Motor,Pressure vessel
Place of Origin	Fujian,China	Warranty	1 Year
Condition	New	Brand Name	MingTeng
Brand	MT	Useful	Shoes Making
Color	Customers'Demand	Key words	Shoe Machine Industry
Shipping	15days	After Warranty Service	Technical Video Support
Machine	Shoe Machine Line	DIMENSION	21590187CM
