Focused on shoe making equipment for 20 years

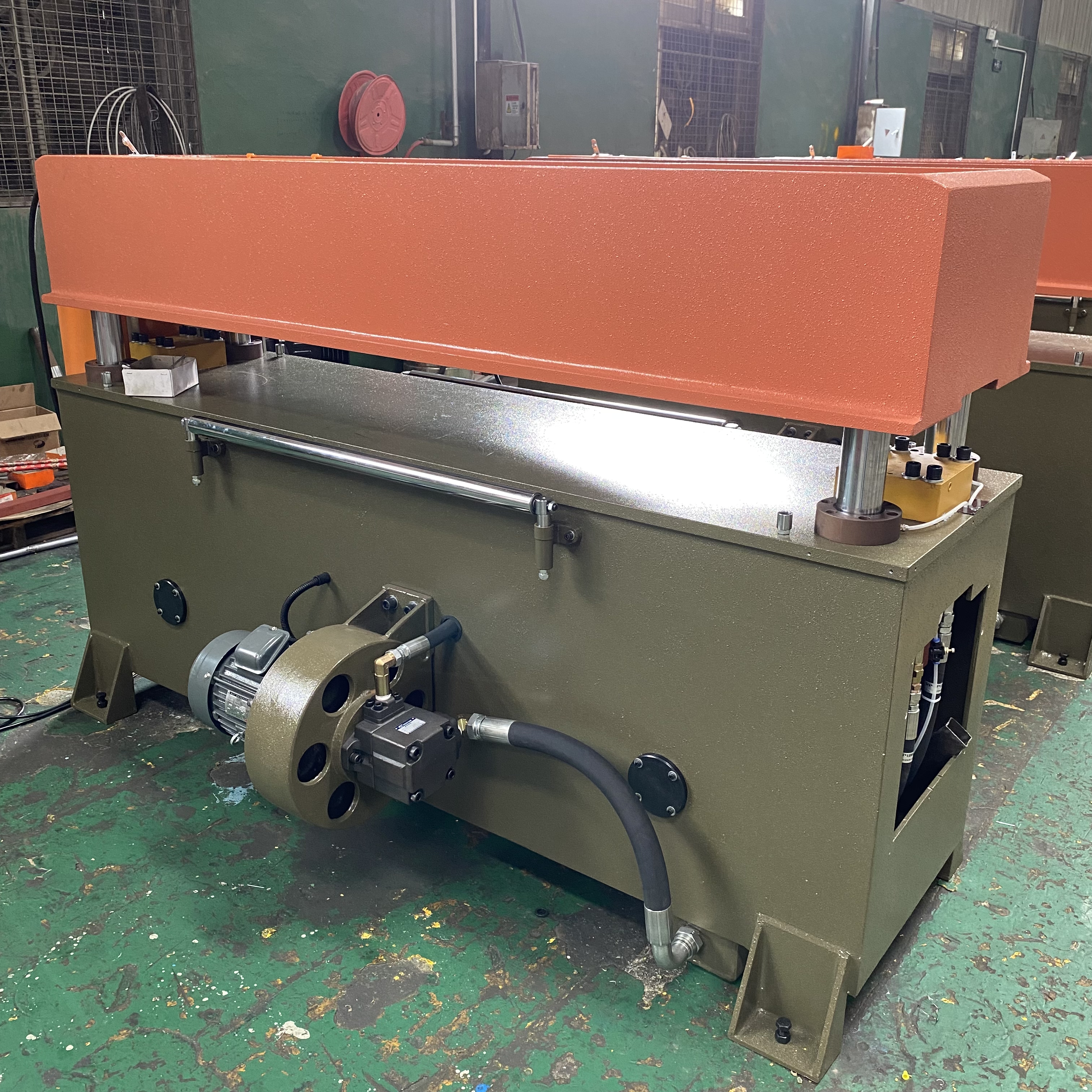

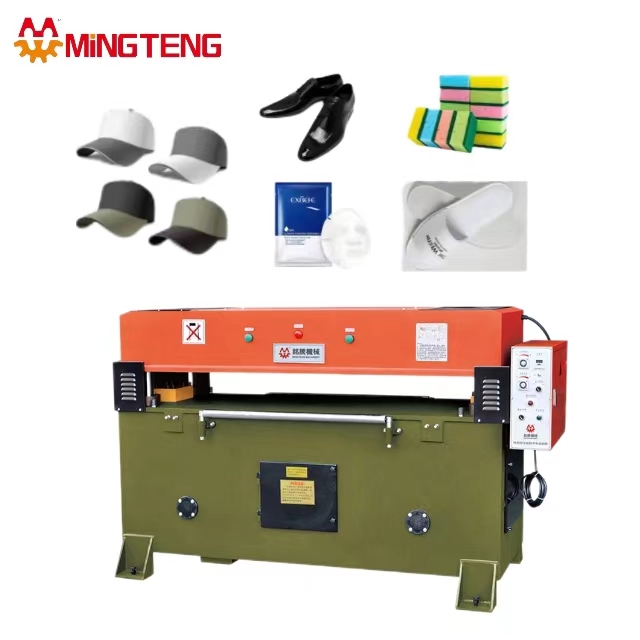

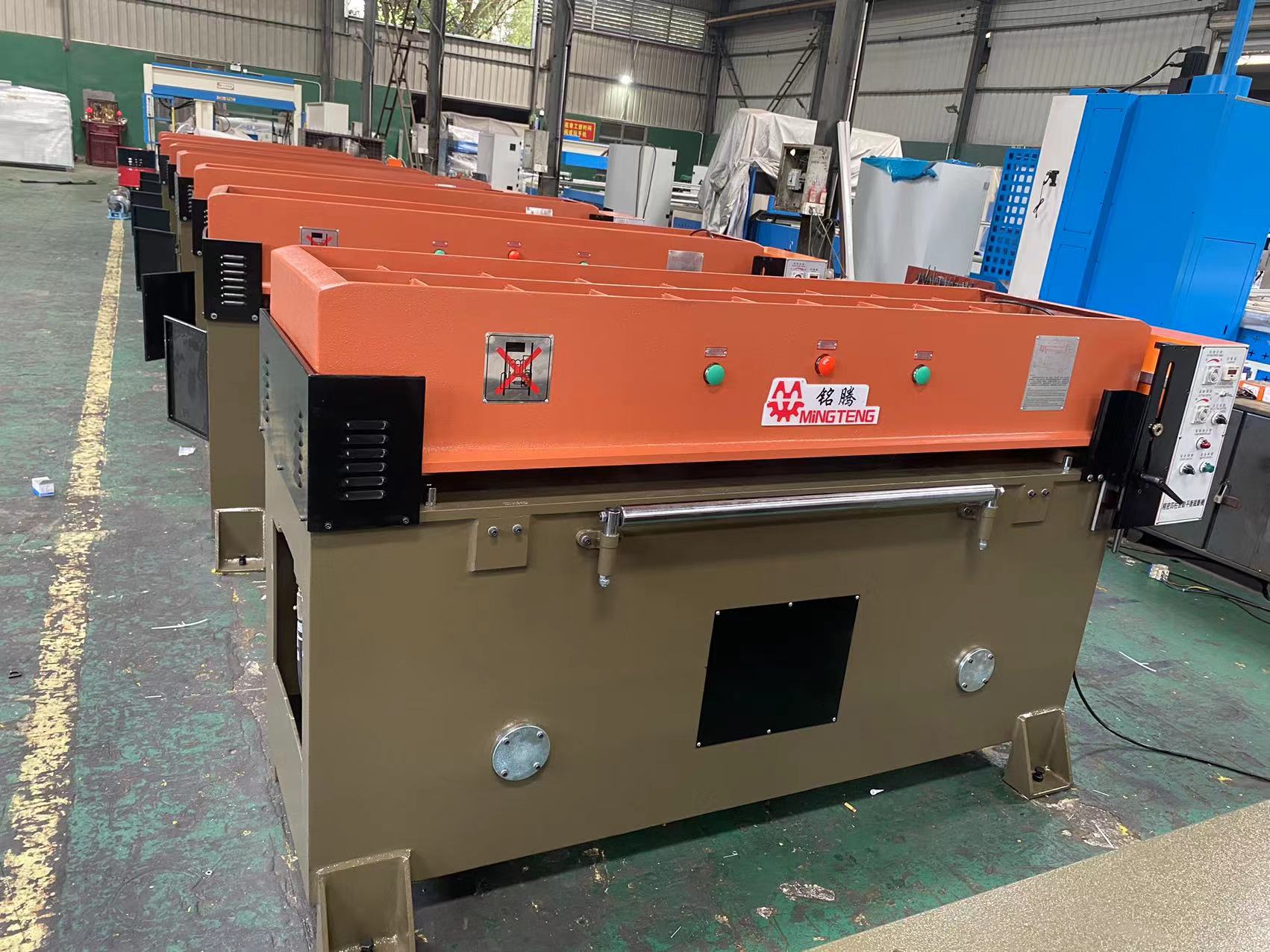

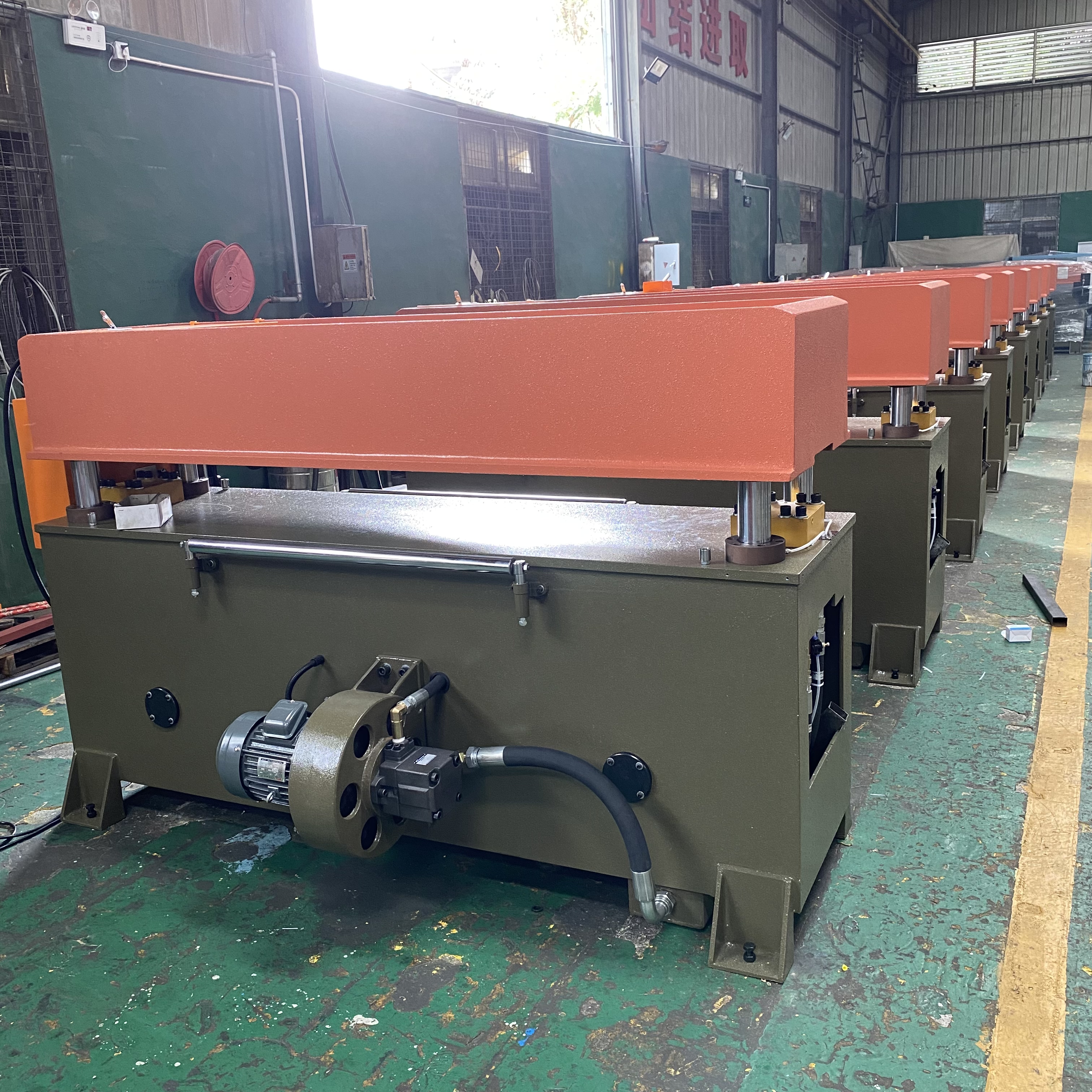

MT-540 Four-Column Automatic Balance Hydraulic Cutting Machine
Precision four column dual cylinder balance cutting machine
The cutting machine is widely used in industrial leather, plastic, rubber, sponge, form, EVA, PVC, cardboard, paper products, fabric, home textiles, packaging materials, non woven, carpet, car cushion, felt, synthetic materials, and other soft non metal materials in various industries, extremely suitable for cutting multiple layers of materials at one time, etc.
Adopted double oil cylinder and precise double-crank connecting rod structure,which can gurantee the same cutting depth of each cutting position.
With special setting structure of die cutter and the depth of cutting, the traveling adjustment is simple and accurate.
When the cutting pressure plate contacts the cutting die, it automatically cuts slowly, so that there is no dimensional error between the top and bottom layers of the cutting material.
Four-Column Automatic Balance Hydraulic Cutting Machine
1.Die cutting machine pressure:35ton--200Ton,Cut material by dies/molds.Can make cutting area according to the size of materials.
2.Hydraulic, manual simple operated, material precision 0.01mm, no burned.
3.The four-column dual-cylinder self-balancing linkage mechanism ensures that the cutting depth of each cutting position is exactly the same.
4.The press differential motion oil-circuit design cutting head slows down automatically at 10mm away from the cut-off knife,ensuring that there is no size.
5.Central self-lubrication system guarantees the precision and durability of the machine.
6.High quality hydraulic oil and the special durable design of the circle cylinder guarantee no oil leakage for five years.
7.Install the German-made oil bearing durable bushing for all movable pivot points.
Key attributes
| Applicable Industries | Manufacturing Plant,Other | Weight (KG） | 1860 |
| Showroom Location | None | Video outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year | Core Components | Engine,Bearing,Motor,Pressure vessel |
| Place of Origin | Fujian,China | Warranty | 1 Year |
| Condition | New | Brand Name | MingTeng |
| Brand | MT | Useful | Shoes Making |
| Color | Customers'Demand | Key words | Shoe Machine Industry |
| Shipping | 15days | After Warranty Service | Technical Video Support |
| Machine | Shoe Machine Line | DIMENSION | 230*100*140CM |
