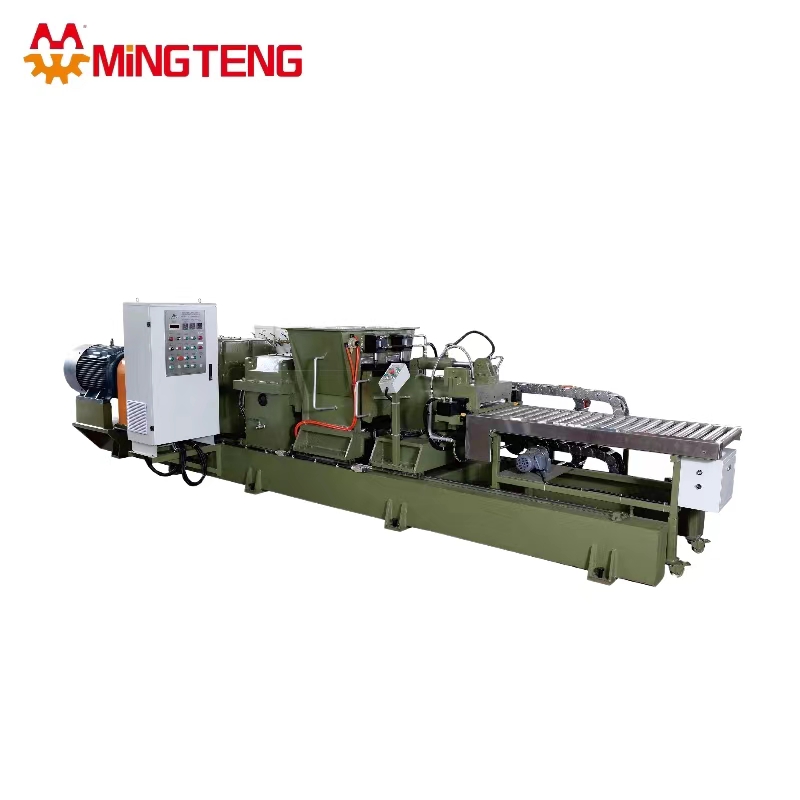

MT-S300,MT-S230,MT-S250 Plastic Recycling Extruder Pelletizer Fiber Plastic Granulating Machine For To Make Plastic Pellets 1

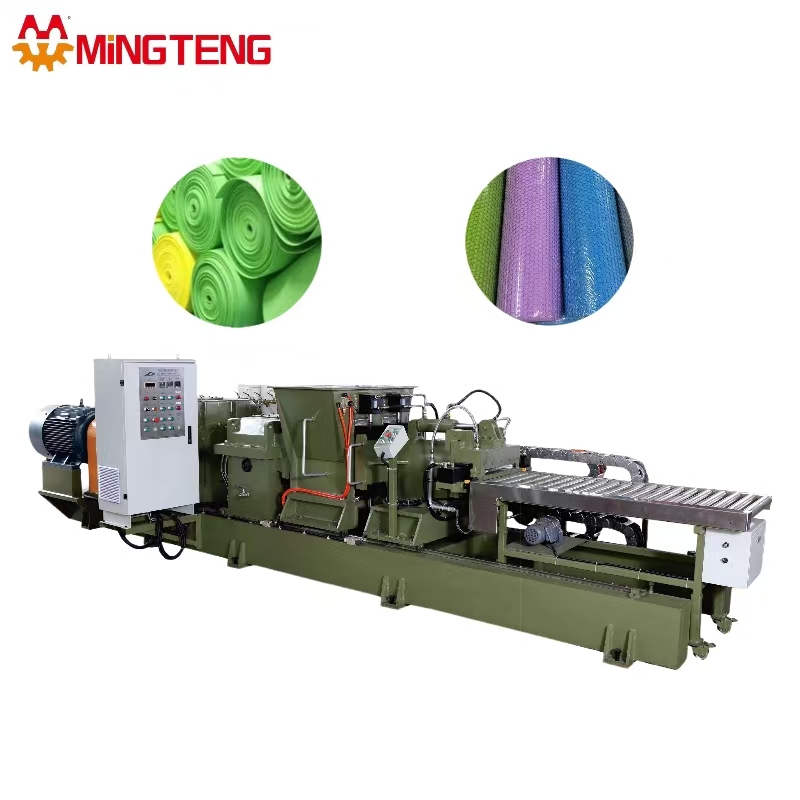

MT-S300,MT-S230,MT-S250 Plastic Recycling Extruder Pelletizer Fiber Plastic Granulating Machine For To Make Plastic Pellets 2

MT-S300,MT-S230,MT-S250 Plastic Recycling Extruder Pelletizer Fiber Plastic Granulating Machine For To Make Plastic Pellets 3

MT-S300,MT-S230,MT-S250 Plastic Recycling Extruder Pelletizer Fiber Plastic Granulating Machine For To Make Plastic Pellets

Twin screw mixing extruder

In the screw shaft, the modular-designed screw elements are with special design. The flights on the screw are interrupted and interact with 3 or 4 rows of stationary kneading pins located in the barrel wall. The interaction between the moving flights and the stationary pins provide dispersive and distributive mixing simultaneously. Meanwhile, the pins and the screw elements work together to keep the barrel self-wiping. Through proper screw design, it can keep the stable working pressure, which avoid the material inside the barrel to be degradable.

Inquiry

Write a Review

Double Stage PP PE Plastic Film Woven Bag Plastic Granulating Line is double stage plastic regenerative pelletizer, which is suitable for many kinds of plastic waste materials recycling and making pellets, such as PE, HDPE, LDPE, PP, BOPP plastic film, bag,fiber,rope scrap material and etc. The film can be pressed in the compressor and then be pelletized.

1.Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc.

2.Material shapes: film, bag,fiber,rope scrap.

3.Material types: rolls, loose, bundled.

4.Material comes from offcut, industry defective materials, washed materials and printed materials.

Note: depending on different material properties, various downstream equipments are needed.

Key attributes

Model	Power	Voltage	Weight (KG)
MT-S300 MT-S230 MT-S250	36KW	380V	9600 11800 13600

Applicable Industries	Manufacturing Plant,Other	Weight (KG）	9600
Showroom Location	None	Video outgoing-inspection	Provided
Machinery Test Report	Provided	Marketing Type	Ordinary Product
Warranty of core components	1 Year	Core Components	Engine,Bearing,Motor,Pressure vessel
Place of Origin	Fujian,China	Warranty	1 Year
Condition	New	Brand Name	MingTeng
Brand	MT	Useful	Shoes Making
Color	Customers'Demand	Key words	Shoe Machine Industry
Shipping	15days	After Warranty Service	Technical Video Support
Machine	Shoe Machine Line	DIMENSION	30080200CM
